Phom Drilling Tshuab

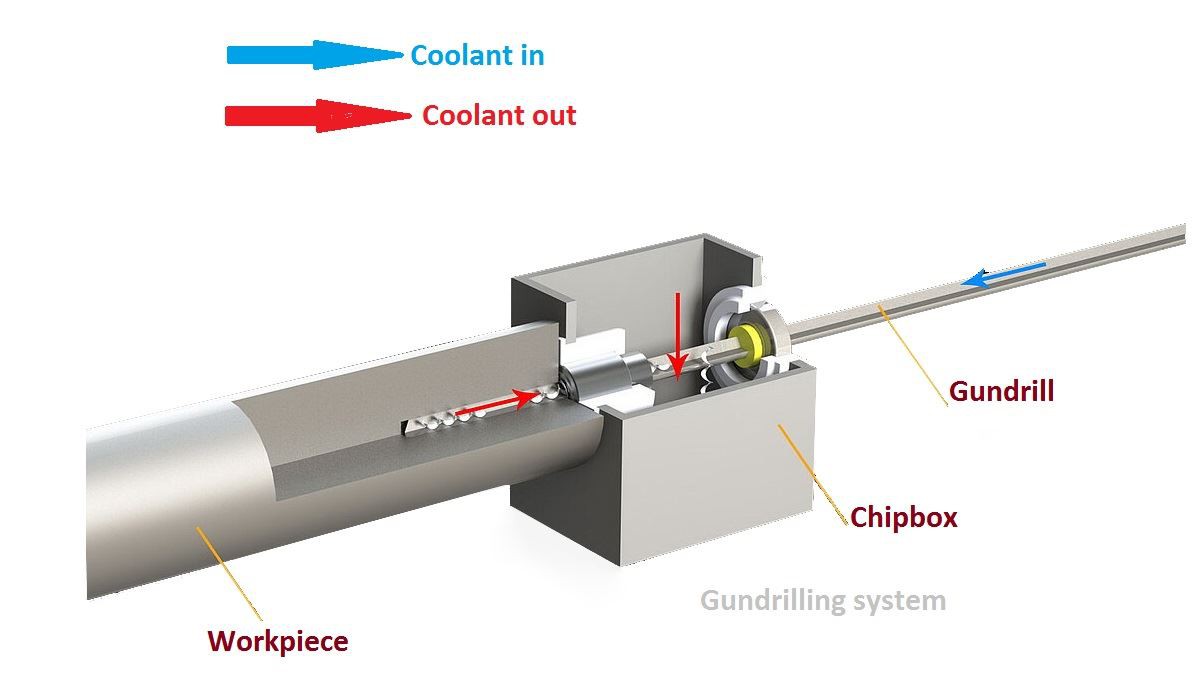

rab phom drilling tshuab,lub tshuab no tshwj xeeb tshaj yog rau qhov me me, los ntawm kev siv rab phom drilling chips

txoj kev tso tawm.

Guanlu rab phom drilling tshuab muaj qauv thiab hom:

Ib leeg spindle rab phom drilling tshuab, ib zaug, tsuas tuaj yeem xyaum ib txoj haujlwm.

Ob chav spindle rab phom drilling tshuab,ib zaug tuaj yeem xyaum ob txoj haujlwm tib lub sijhawm.

Plaub spindles rab phom drilling tshuab, ib zaug tuaj yeem xyaum plaub txoj haujlwm tib lub sijhawm.

Micro rab phom drilling tshuab, uas tuaj yeem laum qhov loj ntawm 1.4mm-10mm.

Standard phom drilling tshuab, peb qauv muaj: 3mm -20mm, 3mm txog 30mm, 6mm txog 40mm.

ob lub koom haum phom drilling tshuab, uas tuaj yeem laum ib kab qhov ntawm lub phaj.

Peb qhov sib sib zog nqus qhov phom drilling tshuab,uas yog dav siv rau pwm indutry los laum lub coordinate qhov.

Phom Drilling thiab BTA sib sib zog nqus qhov drilling tshuab ua ke, peb tau ntse tsim peb tau ntse tsim lub tshuab saum toj no, ib lub tshuab siv tau ob rab phom drilling thiab BTA drilling system. Thov hu rau kom paub ntau ntxiv.

Cov ntaub ntawv ntawm rab phom drilling tshuab:

Laum qhov loj:1.4mm txog 10mm, 3mm txog 20mm, 3mm txog 30mm, 6mm mus rau 40mm

Laum ntevLoj: 500mm / 1000mm / 2000mm / 3000mm / 4000mm

Drilling precision:Thaum lub cuab yeej thiab txoj haujlwm tig, qhov sib txawv yog 0.5mm/1000mm.

Thaum ib qho ntawm lawv raug kho, qhov sib txawv yog 1mm / 100mm

Drilling khoom:Txhua yam hlau thiab qee yam khoom siv tsis yog hlau, xws li Nylon thiab quartz iav.

Qhov tiav nto:Ra0.8um-Ra6.3um. Tshwj xeeb yuav tsum tau rau lub puab nto yuav customerized.

Hom hauj lwm: peb tuaj yeem laum round bar, ncej thiab blocks (los ntawm kev siv tshwj xeeb clamping fixtures)

Qhov hom:peb tuaj yeem laum los ntawm lub qhov, qhov muag tsis pom qhov, lub qhov kauj ruam, lub qhov nruab nrab thiab qhov eccenter.

Deep qhov rab phom drilling tshuab Kev lag luam daim ntawv thov:

Lub tshuab muaj ntau daim ntawv thov sib txawv: Moulds kev lag luam, Hydraulic teb, Tsis siv neeg qhov chaw, textile teb, kho mob apparatus thiab instruments thiab hluav taws xob thiab turbine teb.

Phom drilling tshuab feem ntau qhov chaw:

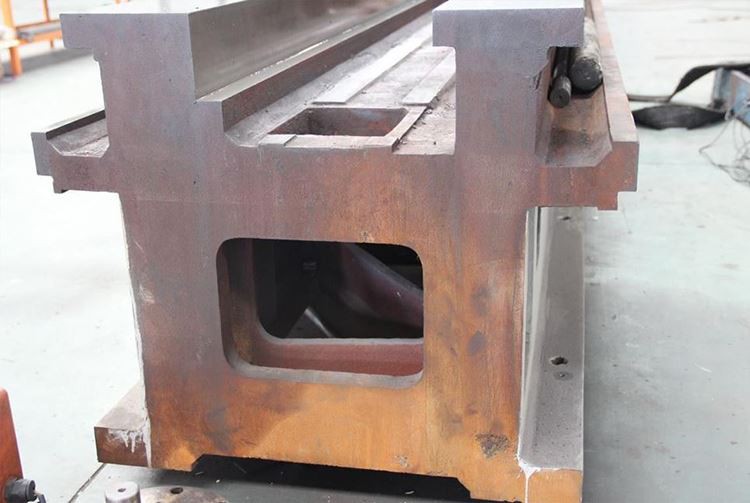

Tshuab txaj:

Peb lub tshuab txaj yog cam khwb cia hlau HT300 (Lub tuam txhab foundry txawv yuav muaj tus nqi sib txawv, tab sis peb ib txwm xaiv qhov zoo tshaj plaws, los ntawm kev siv cov hlau tiag HT300 qib). Lub tshuab txaj qauv yog tsim tshwj xeeb, tav hauv lub tshuab txaj lub thawv. Yog li lub tshuab txaj yog nrog siab rigidity.

los ntawm kev kho ob zaug kev laus.Lub tshuab txaj yog tsim los nrog slant roj rov qab qhov, kom cov roj txiav yuav tsis khaws cia, tuaj yeem rov qab mus rau cov roj tank sai.

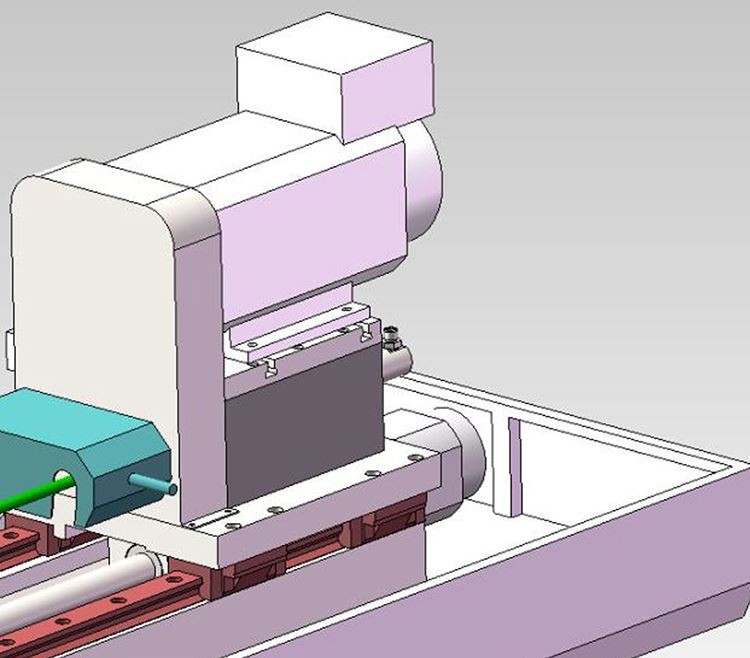

Drill Box:

Txais yuav lub servo lub cev muaj zog tsav lub spindle kom tig los ntawm synchronous siv thiab synchronous siv lub log, ceev stepless yuav tsum tau paub.Tus spindle tsav tsheb pem hauv ntej-nyob, zoo rau kev tiv thaiv lub ntsiab lub cev muaj zog, thiab yooj yim rau kev hloov cov cuab yeej txiav.

Headstock:

Tsav lub workpiece kom tig, Lub ntxaiv tuaj yeem txav axially nyob rau hauv kev tswj ntawm hydraulic system kom nruj thiab loosen lub workpiece; Lub spindle tsav tsheb pem hauv ntej-nyob, zoo rau kev tiv thaiv lub ntsiab lub cev muaj zog, thiab yooj yim rau kev hloov cov cuab yeej txiav.

Lub taub hau tuaj yeem txav tau manually ntawm cov kab ntawv qhia kev tsheb ciav hlau ntawm lub rooj ua haujlwm, xauv rau ntawm lub rooj ua haujlwm manually los ntawm kev xauv qhov thaiv tom qab tsiv mus rau qhov tseeb.

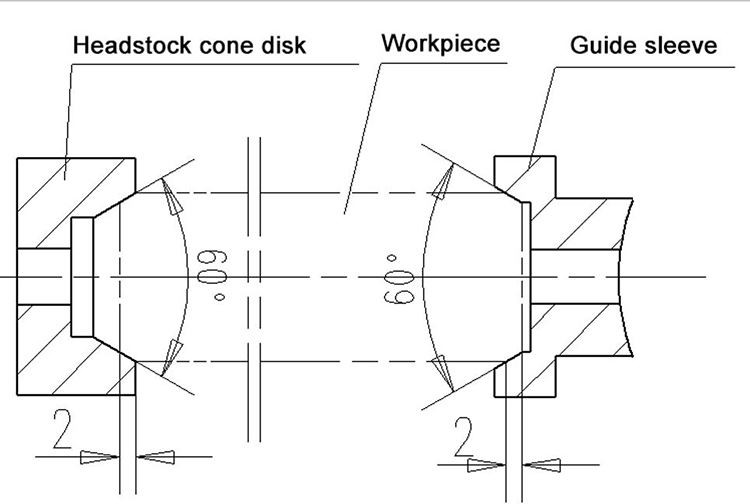

Workpiece clamping:

Lub khob hliav qab disk yog mounted nyob rau hauv pem hauv ntej kawg ntawm headstock spindle, lub hydraulic system tswj lub headstock spindle txav axially, siv lub khob hliav qab disk thiab chamfer ntawm ob kawg ntawm workpiece rau clamp thiab position lub workpiece txiav; Lub chaw so txhawb nqa nruab nrab ntawm workpiece.

Tej cuab yeej pub noj system:

Txais cov qauv ntawm servo lub cev muaj zog tsav lub pob ntsia hlau, cov cuab yeej txiav cov khoom noj ceev stepless tuaj yeem pom tau.

Laum bar txhawb nqa so:

Qhov kev txav ntawm lub laum bar txhawb nqa so thiab laum lub thawv yog txuas; Thaum lub laum lub thawv nyob rau hauv txhua txoj hauj lwm, qhov kev ncua deb ntawm lub laum bar txhawb kev so yog sib npaug.

Coolant system:

Feem ntau yog tsim los ntawm cov twj tso kua mis siab, saw phaj chips conveyor, roj chiller, lim ntaus ntawv thiab lwm yam. Lub siab hloov kho pob qhov rooj thiab ntws hloov vaj huam sib luag ntawm lub tshuab ua kom txias yog ntsia rau ntawm CNC system chaw nres tsheb.

Phau ntawv qhia:

Siv rau kev taw qhia cov cuab yeej txiav, tshem tawm cov chips, txhawb nqa lub cuab yeej bar. Lub tes tsho qhia tau sib sau ua ke ntawm nws lub hauv ntej kawg, siv los coj cov cuab yeej txiav;

Guanlu deephole rab phom drilling tshuab tsis:

Tshuab txheem thiab xaiv configurations:

Lub tuam txhab luv luv qhia:

Dezhou Guanlu Precision Machinery Co., Ltd, tau tsim nyob rau hauv xyoo 2011, peb yog lub Hoobkas nto moo tshaj plaws hauv kuv lub zos los tsim cov phom drilling tshuab.

Kuv lub Hoobkas muaj peb tus kheej lub zog machining chaw, peb paub ib yam tob, tsis muaj qhov zoo machining chaw, koj yuav tsis muaj peev xwm tsim tau qhov zoo tshaj plaws thiab qhov zoo tshaj plaws qhov tob qhov cav tov. Yog li ntawd peb muaj lub teb chaws Yelemees hom Heckert qhia grinder, Suav nto moo tshaj plaws kev npaj, VMC, Lathes, lub thawv tho tshuab, milling tshuab thiab hais txog. Nrog rau cov tshuab machining saum toj no, nyob rau hauv kev tswj kom zoo, yog li peb tuaj yeem muaj kev xa khoom sai thiab ruaj khov.

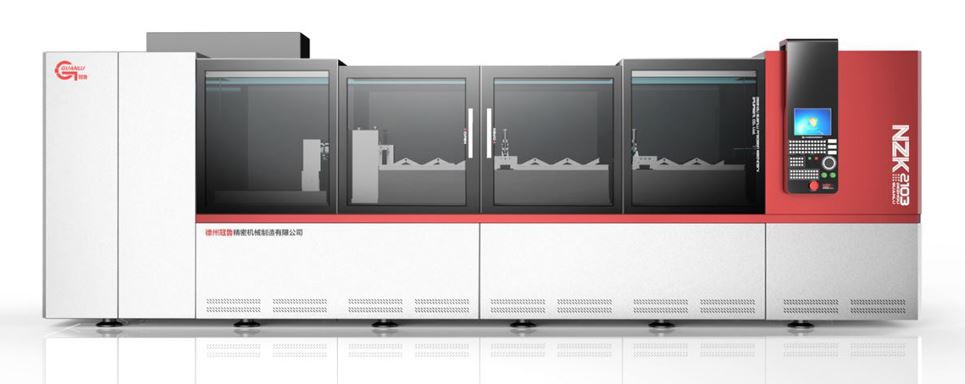

Peb lub qhov tob rab phom drilling tshuab tau raug xa tawm mus rau ntau tshaj 40 lub teb chaws thiab tau txais lub koob npe zoo thiab muaj koob meej. Peb txhim kho peb cov khoom zoo thiab cov qauv niaj hnub. Thov saib peb cov qauv tsim tshiab ntawm peb lub tshuab hauv qab no:

Cov lus nug thiab lus teb:

Q: Koj muaj dab tsi rau rab phom drilling tshuab?

A: DZ Guanlu chaw tsim tshuaj paus muaj ntau hom phom drilling tshuab, ib leeg ntxaiv (ib zaug xyaum ib lub), ob spindles (ib zaug xyaum ob lub), plaub spindles (ib zaug xyaum plaub qhov). Qhov ntev sib txawv, 2D rab phom drilling rau daim hlau drilling, 3D qhov rau thaiv qhov drilling thiab cov neeg siv khoom siv phom drilling nrog milling, tapping functions.

Q: Dab tsi CNC maub los koj siv?

A: Feem ntau peb siv GSK Suav hom, yog tias cov neeg siv khoom thov, peb tuaj yeem siv Fanuc thiab Siemens hom ib yam.

Q: Koj puas muaj rab phom drilling tshuab rau phom phom?

Y: Peb tuaj yeem ua lub tshuab rab phom rau rab phom phom, uas muaj kev ua haujlwm ntawm rab phom thiab reaming zog.

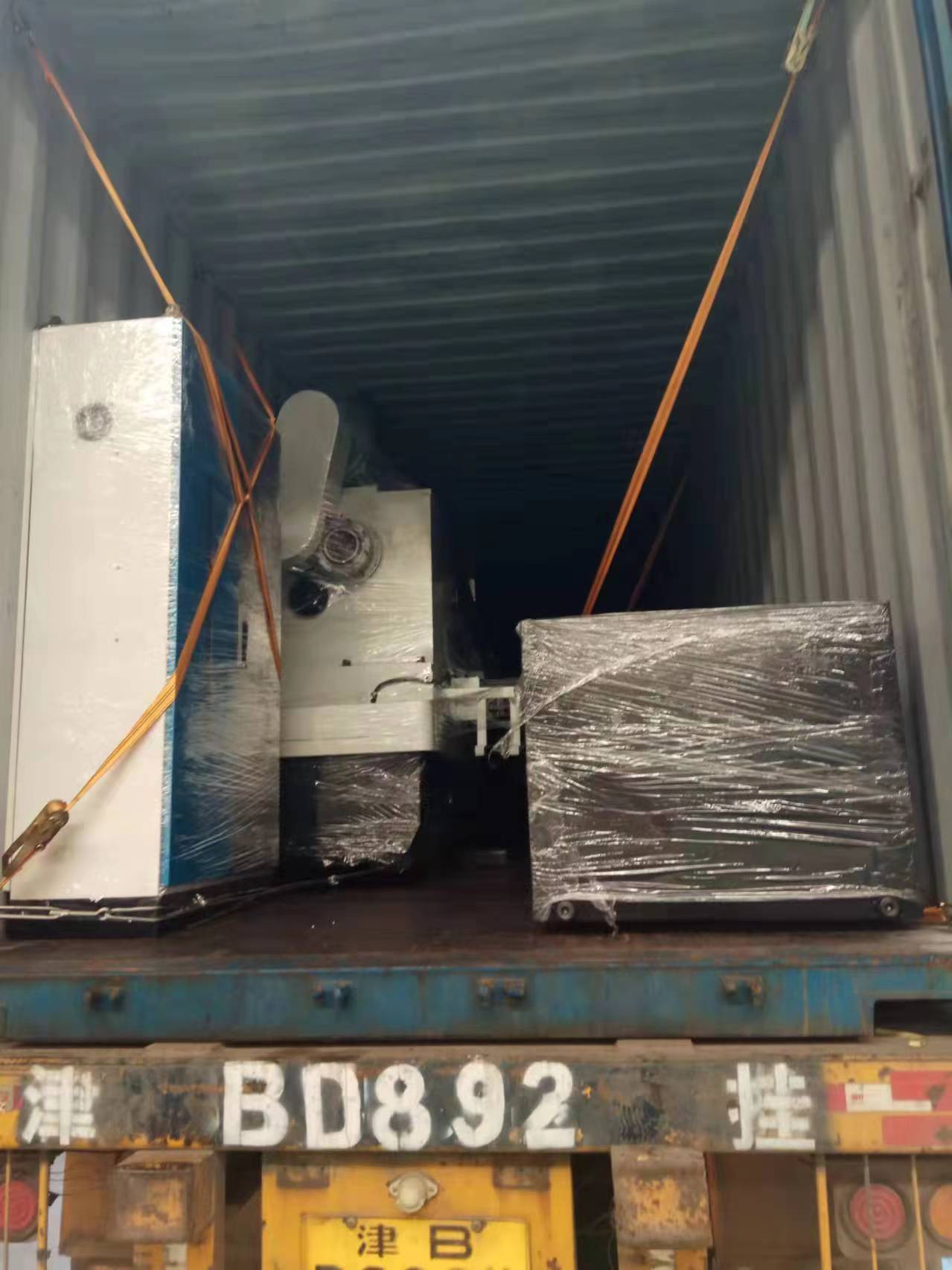

Phom drilling tshuab pob ua ntej nkoj mus rau seaport:

Peb siv cov yas zaj duab xis los ntim cov tshuab rab phom thiab cov khoom yuav ua kom zoo los ntawm cov hlau hlau thiab cov hlua khi hauv cov thawv.
