CNC Deep Qhov Drilling Tshuab
CNC deep qhov drilling tshuab Lub tshuab yog ib qho tshwj xeeb rau kev ua haujlwm cylindrical qhov sib sib zog nqus, xws li lub tshuab spindle qhov, txhua yam ntawm cov khoom siv hydraulic kheej kheej, lub tog raj kheej lub qhov, qhov muag tsis pom thiab qhov chaw staircase.Qhov tshuab txaj muaj zog rigidity thiab zoo precision. Cov ntxaiv ceev ceev ...
Hauj lwm lawm

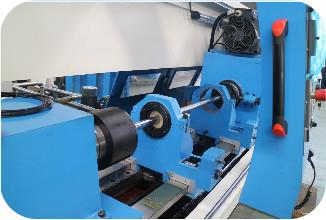

CNC qhov tob drilling tshuab
Lub tshuab yog ib qho tshwj xeeb rau kev muab cylindrical qhov sib sib zog nqus, xws li lub tshuab spindle qhov, txhua yam ntawm cov khoom siv hydraulic kheej kheej, lub tog raj kheej qhov qhov, qhov muag tsis pom qhov thiab qhov chaw staircase.Lub tshuab txaj muaj zog rigidity thiab zoo precision.Lub spindle ceev , qhov kev pub noj yog raug tsav los ntawm AC servo tsav, thiab nws muaj peev xwm ua tau raws li qhov xav tau ntawm ntau qhov sib xyaw ua haujlwm siv technology.Tus roj siab lub taub hau yog tswj los ntawm servo lub cev kom zawm thiab loosening
Khoom qhia meej Description:
Txuag roj system: Nws yog tsuas yog muaj roj tank, twj tso kua mis tsheb, roj pipeline, nti tsheb thiab roj rov chute. 3 teev twj tso khoom pawg thiab 3sets iav twj tso kua mis.Nws tuaj yeem tau 100L / min 300L / min, 600L / min peb hom ntws los ntawm khawm ntawm lub khawm chaw nres tsheb raws li qhov sib txawv kev sib qaum qhib.Qhov tso rau hauv av, tsis txhob yuav tsum tau khawb qhov aub tsiv.
Txoj kev siv roj : Nws yog tsav los ntawm servo lub cev, tom qab lub iav hloov pauv, thiab tom qab ntawd tsav tsheb sib tw los ntawm khib thiab pinion, thiaj li paub qhov ceev ceev pem thiab ua ntej ntawm lub carriage.The pub yog stepless ceev kev cai, thiab qhov khiav ceev yog 5 ~ 500 hli / min.
Kev Drilling / Tho Txuas Kev Siv: Nws yog siv los pab txhawb nqa lub tho / tho qhov kev sib tw thiab tswj kev txav ntawm kev nqhis dej / tho qhov sib tw.Nws muaj qhov xauv nrig hnav kom nqhis qhov kev sib tw ntawm qhov drilling / tho qhov bar.
Tshuab Cov Ntaub Ntawv:
| Specification | Cov Ntaub Ntawv Kev | Cov lus qhia | |
T2136 | |||
Peev Xwm | Kev Them Ntaus Twj Pob | 60-360 hli | |
Laum qhov lub kab qhov dav | 30-100 hli | ||
Max. Tho qhov tob | 3000 hli | ||
Workpiece clamp diameter range | 60-400 hli | ||
Spindle | Qhov siab tshaj ntawm spindle center mus pw | 500 hli | |
Spindle lub pob qhov | 75 hli | ||
Taper ntawm spindle bore | Ø85mm 1:20 | ||
Ntau yam ntawm spindle ceev | 40-500r / min | ||
Tseeb tiag | Infeed ceev ntau | 0-1000 hli / feeb Stepless | |
Kev Thuam Carriage ceev ceev | 2000 hli / min | ||
Lub cev muaj zog | Lub zog loj zog | 30kw | |
Hydraulic twj lub zog fais fab | 1.5kw | ||
Carriage ceev fais fab tuag | 3kw | ||
Infusion lub cev muaj zog | 4.5kw | ||
Coolant twj lub zog fais fab | 7.5kw | 3 pawg | |
Lwm tus | Rated siab ntawm qhov system txias | 2.5MPa | |
Ntws ntawm qhov system txias | 100,300 600 L / min | ||
Tshuab zuag qhia tag nrho (L * W * H) | 12120x2200x2000mm | ||
Tshuab luj (roughly) | 13T | ||
Cov ntaub ntawv muaj tseeb:
Cov khoom | Tshaj tawm | |
Kev siv tshuab | Hydraulic system txuj ci daim duab | |
Ntub zog txheej txheem txheej txheem | ||
Tshuab lub hauv paus kos duab | ||
Teeb duab cov duab kos | ||
Cov kabmob ntawm cov kabmob | ||
Cov duab sib dhos ua ke rau txhua lub voj voog kav thiab qhov tseem ceeb rau kev txij nkawm | ||
Cov kev qhia ntawv hluav taws xob | Hluav taws xob qauv daim duab | |
Hluav taws xob thaiv daim duab. | ||
Cov lus qhia rau sab nrauv yuav khoom | ||
